Bulk RNA-seq Quantification Pipeline 2025

Overview


This pipeline is designed to accurately quantify gene and transcript abundance from bulk RNA-seq data. By integrating both alignment-free and alignment-based methods, it enables cross-validation to ensure robust and reliable quantification results.

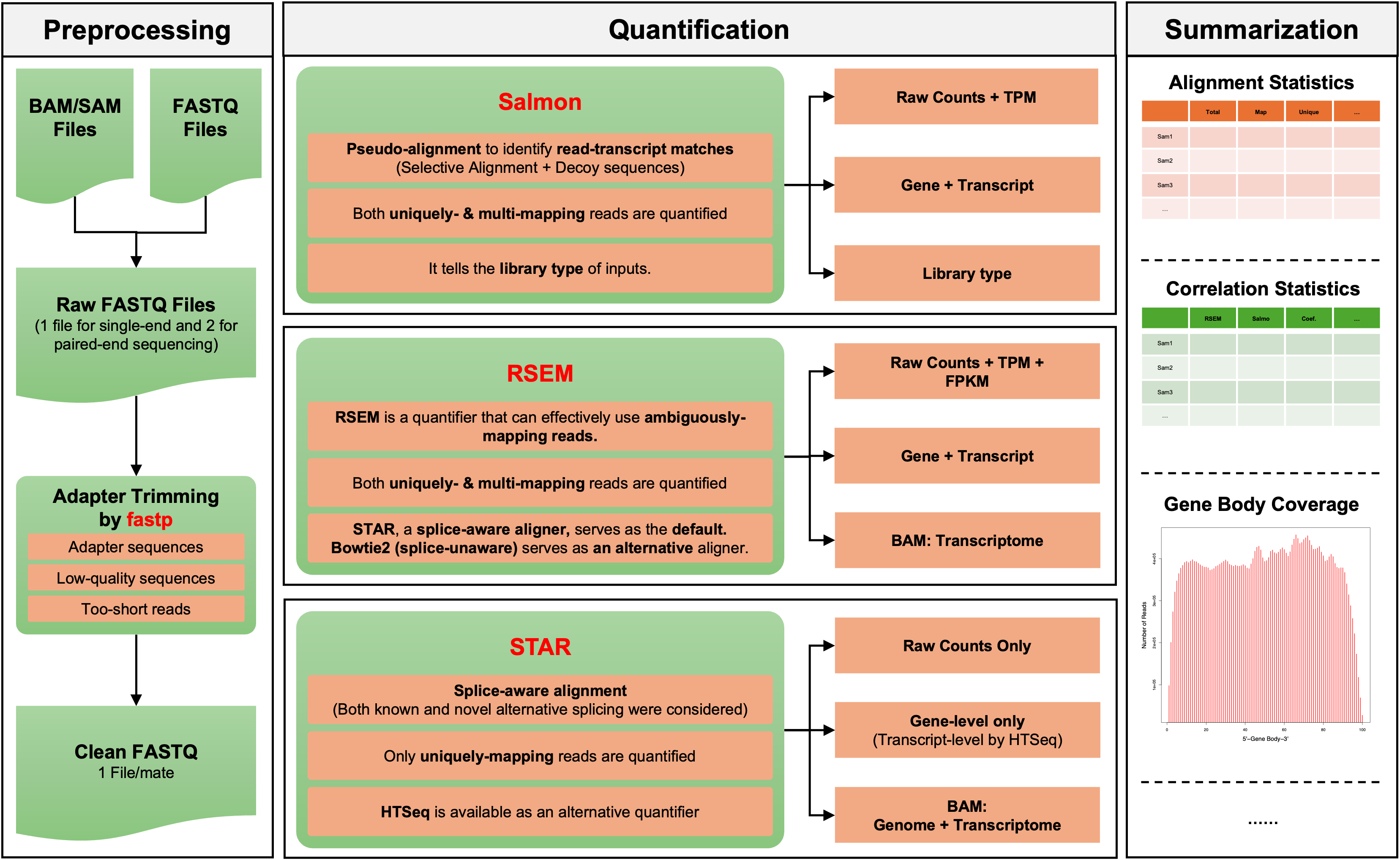

As illustrated above, the pipeline consists of three stages:

1. Preprocessing

The pipeline accepts raw input files in variable formats (e.g., FASTQ, BAM/SAM) and processes them to generate standard-in-format, clean-in-sequence FASTQ files. These preprocessed files are optimized for downstream quantification analysis.

2. Quantification

In this stage, the pipeline quantifies the abundance of both genes and transcripts. It supports three well-established and widely-used quantifiers:

  • Salmon: An alignment-free quantifier known for its wicked-fast speed and comarable accuracy.

    • RSEM: An alignment-based quantifier with exceptional accuracy. It has been used as gold standard in many benchmarking studies.

    • STAR: An alignment-based quantifier featured by splice-aware alignment. This is the tool used by GDC mRNA quantification analysis pipeline.

3. Summarization

The pipeline generates a comprehensive HTML report for each sample, detailing quantification results, alignment statistics, correlation analyses, gene body coverage visualizations, and more. For multiple samples, it produces a unified summary report and a master gene expression matrix including all samples, which can be directly utilized for downstream analyses such as NetBID.

Key features

1. Accuracy ensured by cross-validation

This pipeline quantifies the transcriptome using both alignment-free method (Salmon) and alignment-based method (RSEM_STAR). It then performs correlation analysis between the quantification results from these two approaches. A strong correlation (coefficient > 0.9) typically indicates high quantification accuracy; while samples with low correlation coefficients may require troubleshooting.

2. Comprehensive quality control report

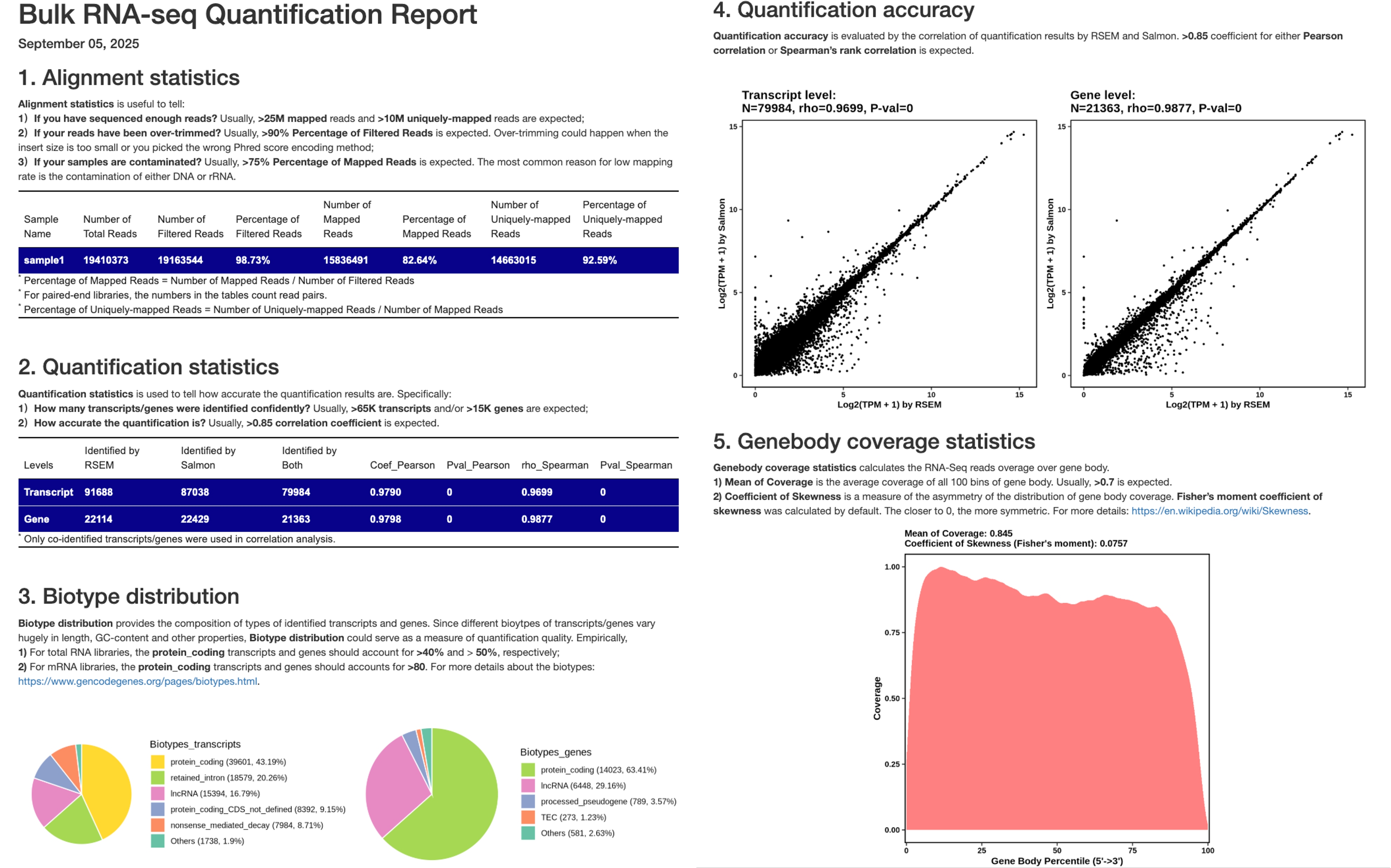

For each sample, this pipeline generates a comprehensive quantlity control report, summarizing alignment statistics, quantification correlations, gene type distributions, and gene body converage metrics, and more (see example below). These metrics are invaluable for asseesing quantification accuracy and troubleshooting potential issues.

image-20230901163554962

3. Flater, Simpler, Faster

Every step of the pipeline has been optimized for ease of use, maintenance and speed:

  • All required tools, databases and scripts now can be set up in a single conda environment.


  • Time-consuming steps, such as gene body coverage analysis, has been optimized. Now a typical run completes in about 1.5 hours.


  • Only two parameters (Library Type and Phred Score Encoding Method) need to be specified manually; all other settings, including adapter sequences and strandness, are automatically inferred.

  • The pipeline now is highly user-friendly for large-scale analyses. Instead of relying on loops or other workarounds to process multiple samples, the pipeline now accepts a sample table (see example below) as standard input and automatically parse it and extract all required information. This makes it effortless to process hundreds or thousands of samples.


To Get Started

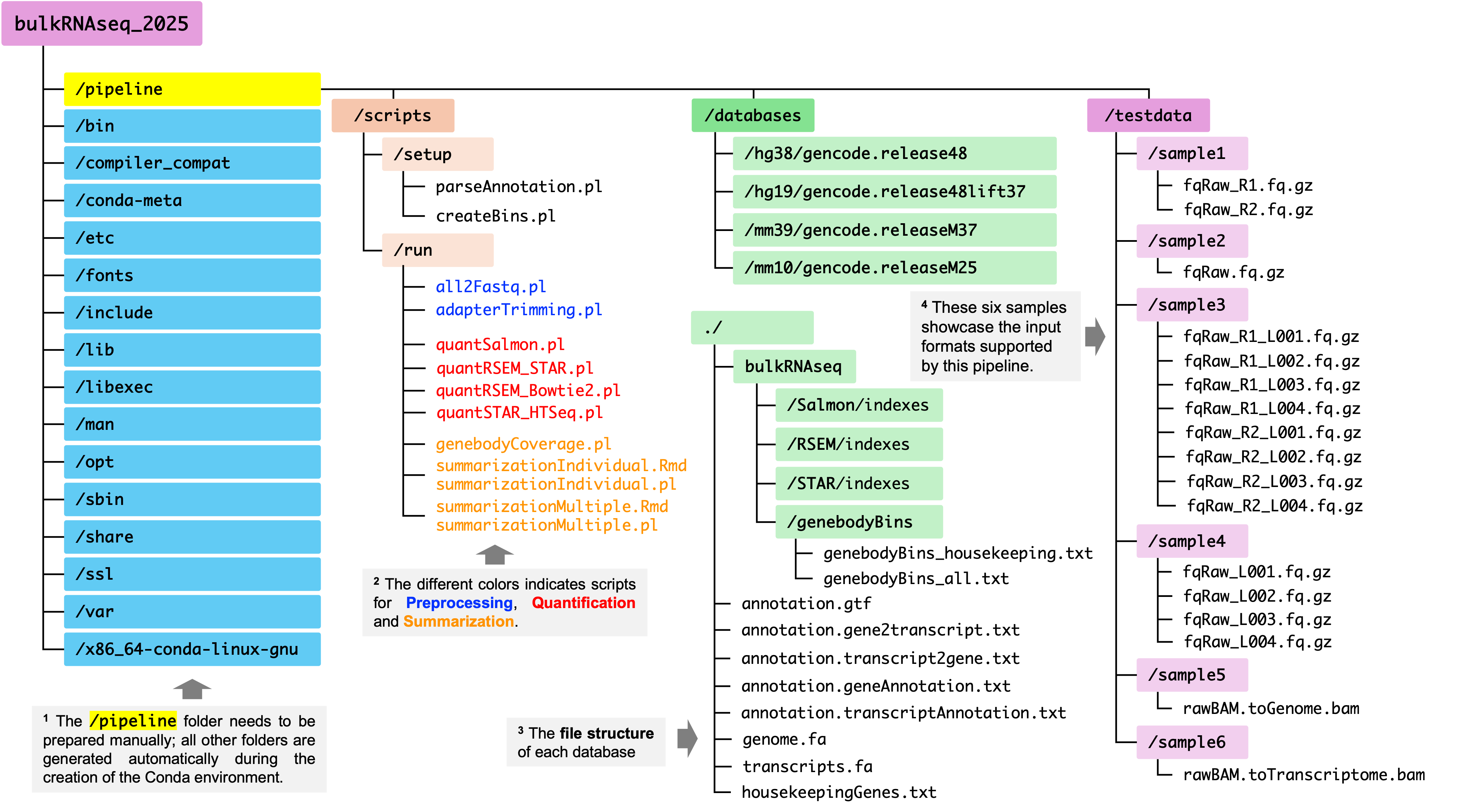

We have set up a conda environment for this pipeline, with all tools, databases (for hg38, hg19, mm39 and mm10) and scripts ready to use. You can activate it using the following commands:

module load conda3/202402 # conda version 24.1.2
conda activate /research_jude/rgs01_jude/groups/yu3grp/projects/software_JY/yu3grp/conda_env/bulkRNAseq_2025
  • If you are unable to access the conda environment above, or if you need a reference genome assembly other than the pre-built ones (hg38, hg19, mm39, mm10), you will need to set up your own pipeline first. For detailed instructions, please refer to this tutorial: Pipeline Setup.

To run this pipeline,

  • If you are new to bulk RNA-seq quantification analysis, or would like to explore the pipeline in detail, please refer to this tutorial: Full Tutorial.

  • If you are already familiar with this pipeline, you can quickly run it with your own samples by following this tutorial: Quick Tutorial.

Contact

If you need support or have any questions about using this pipeline, please visit the FAQ or contact us directly at Qingfei.Pan@stjude.org.
